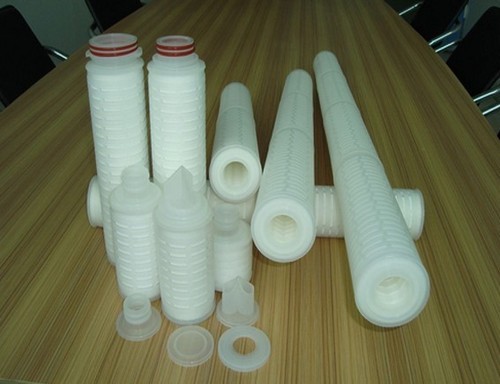

Membrane Filter

Membrane Filter
Membrane Filter
Product Code : KA+PL619
Brand Name : KAPLAS SCIENTIFIC
Product Description

KA+PL619 Membrane Filter

Specifications

Filter media                                         :                                   PES membrane

Length                                                 :                                   10", 20", 30", 40"

Retention rate                                     :                                   100%, 107CFU/cm2

Micron rating (µm)                              :                                   0.1/0.2/0.45/0.65

End cap                                               :                                   doe, 222/fin, 222/flat, 226/fin, and 226/flat

Seal material                                        :                                   silicone, EPDM, NBR, Viton, and Ptfe

Sealed type                                         :                                   sweating soldering

Effective filtration area                       :                                   more than 0.6 m2/10"

Max. Working temperature                 :                                   85°C, 0.05Mpa

Max positive pressure difference        :                                   p0.42Mpa at 25°C

Max negative pressure difference       :                                    p0.21Mpa at 25°C

Sterilizing temperature                        :                                   121 °C, 30min
